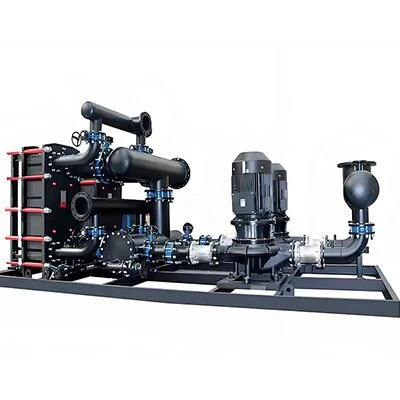

Intelligent heating heat exchange unit
Intelligent heating heat exchange units are modular heating equipment that integrates a heat exchange core, intelligent control system, circulating power module, and safety protection devices into one unit.It is mainly used for the efficient conversion and precise distribution of heat energy in centralized heating systems.It uses advanced heat exchange technology to transfer high-temperature heat energy from the primary network to the secondary network.At the same time, with its intelligent management and control capabilities, it achieves efficient energy utilization and convenient operation and maintenance, making it a core and key device in modern heating systems.
Product Features
1.High efficiency and energy saving, excellent heat conversion rate:It uses high-quality stainless steel, titanium alloy and other corrosion-resistant heat exchange materials, combined with high-efficiency threaded tubes and plate heat exchange structure, with a heat exchange efficiency of up to 95% or more, which can minimize heat loss.It also integrates variable frequency energy-saving technology, dynamically adjusting operating parameters according to actual heating needs, resulting in energy savings of 20%-30% compared to traditional units.
2.Intelligent control and easy operation:Equipped with an industrial-grade PLC control system and a touchscreen human-machine interface, it supports functions such as automatic temperature control, pressure regulation, and flow adaptation.It can monitor key data such as supply and return water temperature, pressure, and flow rate in real time.Remote monitoring and parameter adjustment can be achieved through mobile APP and computer backend, eliminating the need for on-site human supervision and greatly improving operation and maintenance efficiency.
3.Stable and reliable, with comprehensive security protection:Built-in over-temperature protection, over-pressure relief, water shortage alarm, leakage protection and other multiple safety devices can effectively avoid equipment failure and safety risks;The core components have undergone rigorous aging tests, exhibiting excellent resistance to high and low temperatures and corrosion, making them suitable for long-term continuous operation with a mean time between failures (MTBF) of over 8,000 hours.
4.Modular design, flexible installation:The unit is assembled using standardized modules, has a compact structure and a small footprint, and can be flexibly combined and configured according to the heating area and heat source conditions;The installation process requires no complex civil engineering work, and it can be quickly debugged and put into operation after connecting the pipeline, making it suitable for new projects and the needs of old system renovation.
5.Environmentally friendly and energy-efficient, compatible with various heat sources:It is compatible with various heat source forms such as urban centralized heating networks, gas boilers, geothermal energy, and industrial waste heat.The noise level during operation is below 55dB, which meets the requirements of green building and environmental protection, and helps to promote low-carbon heating.
Product Functions
Precise heat exchange regulation
The system uses temperature sensors to collect the supply and return water temperatures in real time, automatically adjusting the opening of the heat exchange valves and the speed of the circulating pump.Ensure that the secondary network water supply temperature remains stable within the set range (adjustable from 50℃ to 85℃) to meet the heating needs of different scenarios.
01
Intelligent energy consumption optimization
The system automatically records operational data, analyzes heating load changes through algorithms, and dynamically adjusts its operating mode.Minimize energy consumption while meeting heating needs; support peak-valley electricity price adaptation; and preset energy storage for heating during off-peak hours to reduce operating costs.
02
Comprehensive data monitoring and alerts
It displays key parameters such as supply and return water temperature, pressure, flow rate, and energy consumption in real time, and generates daily, weekly, and monthly statistical reports.When parameters exceed safety thresholds, timely alerts will be issued via audible and visual alarms, app push notifications, and emergency protection measures will be automatically activated.
03
Remote operation and maintenance and fault diagnosis
Leveraging IoT technology, managers can monitor the unit's operating status in real time via remote terminals.Remotely modify parameters and start/stop equipment; the system has a self-diagnostic function that can quickly locate fault points and provide maintenance suggestions, reducing downtime.
Antifreeze and waste heat recovery
In low-temperature winter conditions, the anti-freeze circulation mode is automatically activated to prevent pipes from freezing and cracking.Some models support the recovery of waste heat from the heating system for use in heating domestic hot water, thus achieving cascaded energy utilization.
05
Scope of Product Application
1.Civil building sector:Suitable for centralized heating in residential communities, apartments, villas, office buildings, hospitals, schools, nursing homes and other civil buildings.The model can be flexibly selected according to the building size (500㎡-100,000㎡) to meet the precise needs of different house types and heating requirements.
2.Industrial production sector:Suitable for heating needs in industrial sites such as factory workshops, warehouses, and production plants.It is especially suitable for industries with high requirements for temperature stability, such as precision manufacturing, electronic processing, and food processing. It can also be connected to industrial waste heat recovery systems to achieve energy recycling.
3.Commercial complex sector:It covers large commercial venues such as shopping malls, supermarkets, hotels, and convention centers, and supports independent temperature control in multiple areas.Heating parameters can be flexibly adjusted according to the usage scenarios and pedestrian flow changes in different areas (such as shops, office areas, and public passages) to balance comfort and energy efficiency.
4.Old system retrofitting area:To address the problems of high energy consumption, poor control, and difficult operation and maintenance of traditional heating systems, old heat exchange equipment can be directly replaced.It can quickly improve heating efficiency and intelligence without the need to reconstruct the entire pipeline network, and is suitable for upgrading and renovating old heating systems in old residential areas and factories.
5.New energy heating system:As a core heat exchange device in geothermal, air source, and solar heating systems, it enables efficient connection between new energy heat sources and heating networks.It facilitates the implementation and application of new energy heating projects and is suitable for new energy demonstration communities, green building projects, etc.
